One-Piece vs. Multi-Piece GPS Ankle Monitors: How NIJ Standard 1004.00 Defines Both Architectures

Introduction: Why NIJ 1004.00 Starts With Architecture

Procurement teams evaluating offender tracking systems (OTS) often begin with battery life, carrier coverage, or software workflows. Those factors matter, but the National Institute of Justice (NIJ) Standard 1004.00 establishes a more fundamental fork in the road: one-piece versus multi-piece hardware architecture. Section 1.3 (Application) explicitly defines both configurations and ties them to distinct figures in the standard. For a criminal justice technology engineer, that distinction is not academic—it drives pairing logic, wireless attack surface, separation alerting, charging test preconditions, and long-run field reliability.

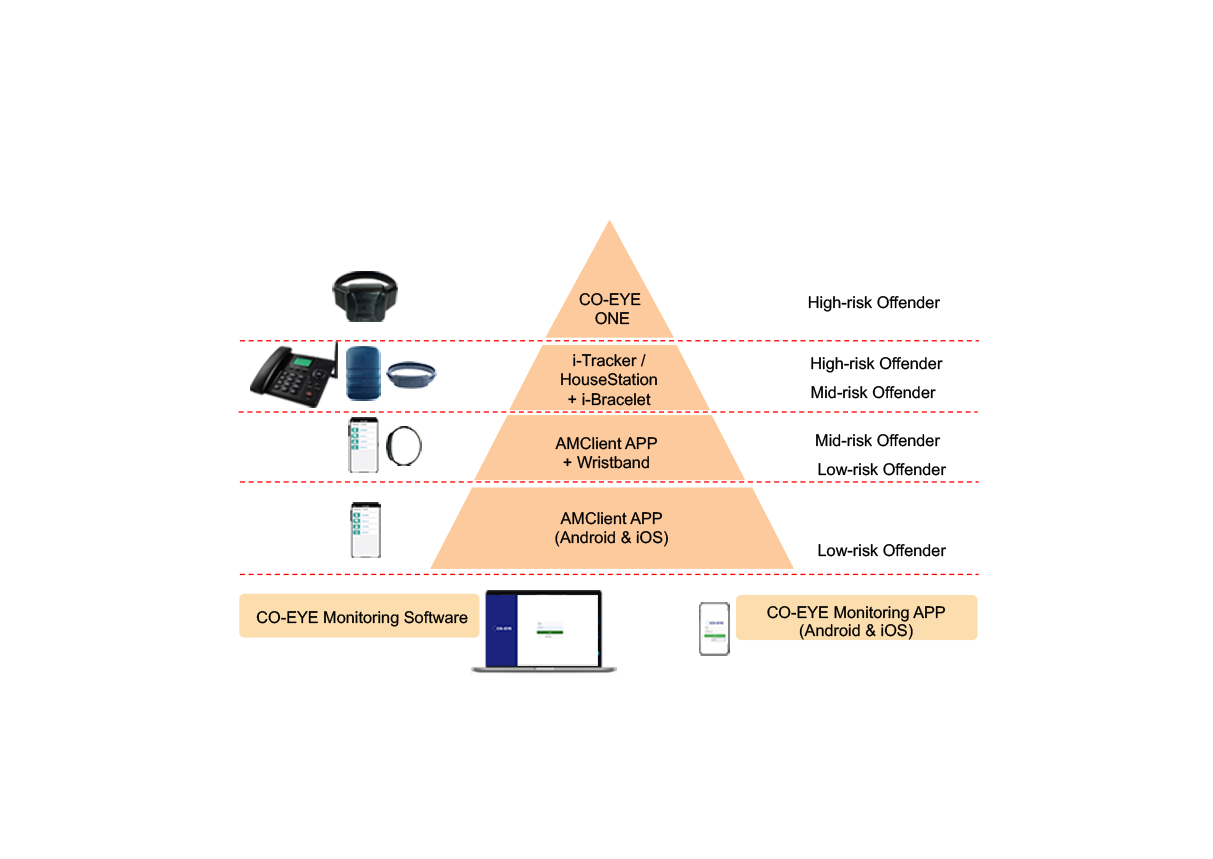

This article explains how NIJ Standard 1004.00 defines each architecture, what additional compliance burdens fall on multi-piece designs, and how those requirements translate into operational risk for agencies and supervision vendors. Where helpful, we connect the one-piece model to fielded equipment approaches such as the CO-EYE ONE one-piece GPS ankle monitor and broader procurement guidance in the GPS ankle monitor buyer’s guide.

Throughout NIJ literature, the goal is repeatable, laboratory-verifiable performance that agencies can cite in RFPs and courts can understand during evidentiary discussions. When a standard explicitly illustrates two architectures in Section 1.3, it signals that vendors cannot hand-wave “functionally equivalent” behavior—the test matrix and subsystem boundaries are part of the public contract between supplier and criminal justice purchaser.

One-Piece Configuration (NIJ Figure 1)

In a one-piece configuration, a body-attached device contains the location methodology apparatus, communication device, battery, attaching straps and clips, indicators to the participant, and casing.

— NIJ Standard 1004.00, Section 1.3

In plain engineering terms, the entire supervised participant interface is a single physical assembly worn on the body—typically the ankle. GNSS/GPS reception, cellular (or other wide-area) communications, power storage, tamper sensing, participant indicators (LEDs, buzzers, haptics), and the structural enclosure are co-located. There is no separate “relay” or “home unit” that must remain within RF range for the location pipeline to function in its nominal mode.

Operational and technical advantages

• No pairing workflow for the tether link. Because there is no distinct body-proximate tracker mated to a body-attached tether, agencies avoid the provisioning steps and failure modes associated with assigning a tether to a tracker.
• No “tether-gone” separation state. Multi-piece systems must detect when the tether and tracker separate; one-piece designs remove that entire class of events from the supervision model.
• Simpler officer mental model. Field staff handle one sealed assembly, one charge routine, and one chain-of-custody artifact rather than coordinating two powered devices with inter-device RF security requirements.
• Integrated anti-tamper and RF design. GNSS antennas, cellular antennas, and tamper sensors can be co-engineered for a single enclosure, which often yields more predictable RF performance than an asymmetric two-unit industrial design.

What “all-in-one” implies for subsystem design

From a systems architecture perspective, the one-piece OTS is a tightly coupled embedded system: positioning estimators, motion sensing, secure boot, cryptographic modules for transport security, and power management share one board support package and one firmware release train. Change control therefore emphasizes regression testing on the unified stack rather than coordinating version skew across tether firmware and tracker firmware.

Reliability engineering also benefits from a single mechanical assembly: ingress protection (IP) seals, strain relief on the strap interface, and drop/shock survivability are validated once per SKU. In contrast, multi-piece programs must maintain seal integrity and mechanical wear data across two housings—each with its own charging port cover, battery latch, and participant handling history.

Quick reference: subsystem location

Multi-Piece Configuration (NIJ Figure 2)

NIJ Standard 1004.00 defines the multi-piece configuration as two separate units: one body-attached and one body-proximate. The standard allocates subsystems between them in a way that intentionally decouples the participant-worn element from the element that performs location fixing and wide-area reporting.

Subsystem allocation per the standard

According to Section 1.3, the body-proximate unit houses the location methodology apparatus, communication device, battery, indicators to the participant, and casing—meaning the “smart” side of the system may be carried in a bag, worn on a belt, or placed on a nightstand depending on program rules, while still being classified as body-proximate rather than body-attached. The body-attached unit contains the transmitter/receiver, battery, attaching straps and clips, and casing—i.e., the ankle-worn RF front-end that maintains proximity to the participant’s body.

Pairing as a formal process

The standard defines pairing precisely: “The process of assigning a body-attached tether to a body-proximate tracking device.” That definition matters for test plans and for IT operations. Pairing is not merely Bluetooth convenience; it is the security and accountability binding between two distinct hardware identities. Any field procedure that re-pairs devices—after RMA, after battery exhaustion, or after participant tamper—must be understood as a controlled configuration change with audit implications.

Separation detection and alerting (Section 6.13)

Multi-piece architectures introduce a failure mode that one-piece designs do not: physical separation of the tether from the tracker. NIJ Standard 1004.00 therefore includes the Multi-Piece Separation Detection and Alert Test. In summary, the architecture must detect separation within five minutes, and the agency must receive alert notification within four minutes of the local alert presented to the participant (as specified in the standard’s separation test requirements). Read sequentially, that timing chain imposes discipline on both device firmware and back-office systems: the participant sees a local indication first; the monitoring platform must then ingest, correlate, and dispatch an agency-visible alert before the four-minute window elapses.

For engineers, that is a hard real-time constraint spanning RF link margin, firmware state machines, backhaul latency, and monitoring center workflow—any weak link shows up as false negatives (missed escapes) or false positives (nuisance “tether-gone” storms). Network operations centers should treat separation alerts as first-class incidents with defined escalation, because the standard’s test language is written around detectable, time-bounded outcomes—not merely logging an event in a database.

Encrypted wireless link requirements

Multi-piece systems must additionally demonstrate encrypted wireless communications between tether and tracker. NIJ Standard 1004.00 references FIPS 197 or FIPS 46-3 compliant encryption and FIPS 140-2 validation for cryptographic modules protecting that link. Practically, this elevates the RF tether from a simple proprietary beacon into a cryptographically defended channel that must be implemented, validated, and sustained across firmware updates—another divergence from one-piece designs where inter-module traffic stays inside a single PCB boundary.

Security architects should note the lifecycle burden: key rotation, side-channel resistance, and module re-certification when silicon or crypto libraries change are all easier to reason about when ciphertext never leaves the board. Once ciphertext traverses a wireless tether, penetration testers and state adversaries alike treat that interface as an attack surface. Procurement teams should therefore request documentation not only that AES (or approved legacy algorithms under FIPS 46-3) is used, but also how pairing keys are established, stored, and wiped on decommissioning.

NIJ Conformance Testing: Where the Architectures Diverge

Both configurations must pass the same core performance, environmental, and safety envelopes; the standard’s intent is parity on outcomes where architectures are comparable. However, multi-piece systems carry additional mandatory tests and different preconditions where the physics of two batteries and two charge ports matter.

Charging time preconditions (Section 6.1.3)

NIJ Standard 1004.00 specifies different charging intervals prior to certain tests:

Tests unique or emphasized for multi-piece

• Tether-gone / separation detection: Multi-piece must pass the separation detection and alert workflow; one-piece is not subject to that failure topology.
• Encrypted tether–tracker communications: Multi-piece must satisfy the cryptographic controls on the wireless tether link.
• All other tests: Both architectures are expected to meet identical criteria where the standard applies common language—environmental exposure, reporting latency categories, tamper classes, and participant indication requirements still apply uniformly.

Procurement and RFP Language

When agencies cite NIJ Standard 1004.00 in solicitations, engineers should insist on explicit architecture declarations. A compliant response for multi-piece equipment should map each subsystem to Figure 2, identify the pairing method, and attach separation-test and crypto-module evidence. A one-piece response should map subsystems to Figure 1 and avoid ambiguous phrases like “modular design” unless every module remains inside the single body-attached housing described by the standard.

Vendors evaluating one-piece GPS hardware can shorten RFP risk sections by eliminating tether-link cryptography and separation timing from the critical path—while still proving tamper, communications, and environmental performance against the shared baseline tests. Cross-functional teams (legal, IT, field services) benefit when architecture choice is decided before software customization, because multi-piece deployments almost always imply more moving parts in MDM-style device logistics.

Operational Impact in Production Supervision Programs

Conformance on the bench does not guarantee calm operations in the field. Multi-piece systems introduce operational patterns that supervision vendors and agencies must staff for:

• False “tether-gone” alerts. RF fades inside residences, participant habits that set the tracker on a countertop, or intermittent interference can present as separation. Programs need clear SOPs distinguishing true non-compliance from RF geometry issues.
• Pairing failures and reprovisioning. Help-desk load increases when participants swap chargers, receive refurbished units, or exhaust batteries asymmetrically across the two devices.
• Dual battery management. Two discharge curves mean unequal state-of-charge can strand one side of the link even when the other appears healthy—especially if participants charge only the more convenient unit.
• Training burden. Officers must explain two objects, two LED languages, and separation rules. Simpler one-piece training loops reduce classroom time and curbside support.

None of this implies multi-piece designs are inherently inferior—some programs deliberately want a body-proximate hub for ergonomic or RF reasons—but it does mean Total Cost of Ownership (TCO) models should include help-desk time, false alert investigation, and spare-parts SKUs for both halves of the system.

For pretrial and high-caseload probation environments, officer time is the scarce resource. A one-piece device that eliminates tether separation logic can reduce per-participant touch time during installation and during charging coaching. Conversely, specialized programs that already run intensive RF troubleshooting may accept multi-piece complexity if it solves a documented coverage problem—provided monitoring centers scale staffing to the alert patterns NIJ’s separation test implies.

FAQ

Does NIJ Standard 1004.00 prefer one-piece over multi-piece?

No. The standard defines both architectures neutrally and sets additional requirements where multi-piece introduces separation and wireless link risks. Procurement should map architecture to program workflow, participant demographics, and monitoring center capacity—not assume a NIJ “winner.”

What is the core technical difference in one sentence?

One-piece integrates location, communications, power, and participant indicators into a single body-attached assembly; multi-piece splits RF tethering on the body from a body-proximate unit that performs location methodology and wide-area communications.

Why does charging precondition differ between configurations?

Section 6.1.3 reflects the reality of two independent batteries and charge circuits in multi-piece systems versus a single integrated power subsystem in one-piece designs—labs and vendors must follow the stated charge intervals before executing applicable performance tests.

What should a buyer verify beyond marketing labels?

Request the conformance portfolio for the exact architecture sold: separation test evidence for multi-piece, cryptographic module references for the tether link, and confirmation that firmware versions on tether and tracker are supported as a matched set. For one-piece systems, validate tamper, communications, and reporting tests on the integrated unit. Use structured procurement checklists such as the buyer’s guide alongside NIJ language.
